Injection molding and CNC machining can both produce plastic prototype parts, but they answer different procurement questions. CNC removes material from a stock shape; injection molding forms molten resin in a dedicated mold. The better route depends on the learning objective, required material and geometry, quantity pattern, functional interfaces, appearance, delivery boundary and the evidence needed before production—not on a universal prototype-volume threshold. A CNC part can be useful for early fit, assembly or geometry learning, while a molded prototype can be useful when the team needs to assess a moldable design, a selected molding grade or production-relevant features. Neither result automatically proves the other process will meet the same requirement.
For an overseas OEM or procurement team, compare controlled proposals rather than asking which process is cheaper or faster in the abstract. State the CAD and drawing revision, resin direction, critical features, intended service environment, sample quantity, test purpose, inspection method, packing and destination. Then require each supplier to distinguish its proposed manufacturing route from the customer requirements. This guide sets out that decision record, the evidence to request and the approval gates that should remain open until the relevant prototype result is reviewed.
Requirement: define what the prototype must demonstrate, the material and interface constraints, acceptance criteria and release authority. Recommendation: let each supplier propose a CNC or molding route, then compare the proposal only after its assumptions, evidence and exclusions are visible.
01
Which prototype process should a buyer choose first?
Choose CNC machining when the immediate question is whether a revisable geometry, an assembly interface, a local feature or a limited number of parts can be evaluated from an available machinable stock form. Choose injection molding when the question includes moldability, molded-part behavior, gate or parting-line consequences, replication across a tool, or evidence from a selected molding-grade route. These are decision directions, not guarantees: a particular resin, part shape, tool concept, machine, finishing requirement and customer specification can change the practical fit of either process.[1][2]
Start by defining the prototype's decision purpose. A design team may need an ergonomic model, a tolerance-stack check with mating parts, a functional assembly sample, an exposure article, a cosmetic review, a process-risk study or a pre-production approval sample. One prototype may not be suitable for all of these purposes. Requirement: the customer should identify which claimed learning outcome is mandatory. Recommendation: ask the supplier to mark which outcomes its proposed sample can support, which are not represented, and which need a subsequent molded trial or different test article.
Do not treat a nominal quantity as the sole selection rule. Injection molding usually introduces a separate tool-design and tool-build scope before parts are made, whereas CNC typically has no dedicated cavity tool for the part. The resulting economic and schedule balance depends on revision stability, part complexity, resin, number of samples, cavities, secondary work, inspection, shipping boundary and expected follow-on demand. Compare those inputs in the project record rather than applying a generic break-even number.[1]
| Buyer decision question | CNC plastic prototype route may be considered when | Injection-molded prototype route may be considered when | Supplier evidence and approval gate |
|---|---|---|---|
| What must the sample prove? | The team needs to assess a revisable form, accessible features, an interface or a limited sample set from a specified stock material. | The team needs evidence related to a moldable part, selected resin direction, molded surface or production-relevant tool and process decisions. | Request a written purpose-and-limitations statement. Gate sample release on agreement that the proposed article addresses the intended learning objective. |
| How stable is the design? | Geometry may change after fit, usability or mating-part review, and the supplier can access the required features with its proposed setup. | The functional geometry, draw direction, draft, interfaces and visual requirements are stable enough to review a tool concept. | Request marked CAD feedback identifying inaccessible areas, undercuts, draft, parting lines, gates, ejection and proposed changes. Gate tooling only after the controlled revision is approved. |
| How important is material representation? | A machinable stock form can support the stated prototype purpose, with its grade, condition and direction of material removed documented. | A named molding grade and processing route are necessary to investigate the intended molded-part behavior. | Request the material manufacturer, exact grade or provisional grade, lot identification where available, material form and any permitted alternative. Gate functional claims on the customer-defined test plan. |
| What quantity and continuity are needed? | The requested quantity and revision risk do not justify committing to a dedicated tool under the current program assumptions. | Repeated samples, bridge demand or production-learning value may justify evaluating a tool, subject to a separate scope and business case. | Request itemized non-recurring and recurring scope, sample quantity, inspection, packing, delivery terms and exclusions. Gate a purchase decision on a normalized total-scope comparison. |
| What defines acceptance? | Dimensions, interfaces, finish and any functional checks are defined for the machined article and measurement condition. | Dimensions, cosmetics, gates, parting lines, shrinkage-sensitive interfaces and representative molded conditions are defined for the trial article. | Request a measurement plan linked to datums, drawing revision and acceptance method. Gate approval on documented results and disposition of deviations. |
02
Do not assume that a machined plastic prototype represents a molded part
A polymer family name is not a complete material specification. A CNC supplier may machine sheet, rod, plate or billet; a molding supplier may process pellets in a named grade. The material form, grade, filler or modifier package, moisture condition where relevant, orientation, thermal history and processing route can affect the properties and dimensional behavior that matter to a part. Material suppliers describe broad property balances and grade options, but those data do not approve a specific part or application.[3] Requirement: identify the material requirement and service conditions. Recommendation: record the exact candidate grade and form for each prototype route, rather than describing both as simply “PC,” “nylon” or another family name.
This distinction matters when a prototype will be used to judge stiffness, impact response, creep, snap behavior, chemical contact, electrical behavior, temperature exposure or dimensional fit. A machined article can still be highly useful, but it should not be presented as proof of properties that depend on molding conditions or geometry. Likewise, a first molded article is not evidence that every lot, cavity, machine or future process setting will give the same outcome. Resin, local wall thickness, flow direction, cooling, tool design, machine control and environment remain part of the technical context.[1][2]
Ask the supplier for a material statement that separates fact from proposal: manufacturer and grade, stock or pellet form, color or additive direction, material source, drying or conditioning assumptions where applicable, substitutions, and traceability available for the sample. If a customer requirement relates to a regulated, safety or market-specific claim, the product owner should name the applicable requirement and required evidence. A resin datasheet, a supplier declaration or a prototype test result does not itself establish end-product approval or certification.
03
Compare geometry, tolerance and appearance against the actual process route
CNC machining gives the supplier a tool-access, workholding and cutter-path problem. Deep pockets, small internal radii, thin sections, long flexible features, blind features, complex setups and surfaces released from clamps may need special treatment or may not represent the intended molded form. Machining guidance also notes that material and clamping can affect results, especially for thin-walled plastic parts after removal from the machine.[4] Requirement: provide controlled drawings, datums, critical-to-function dimensions, mating parts and measurement conditions. Recommendation: ask for a setup and inspection proposal rather than inferring capability from a general tolerance statement.

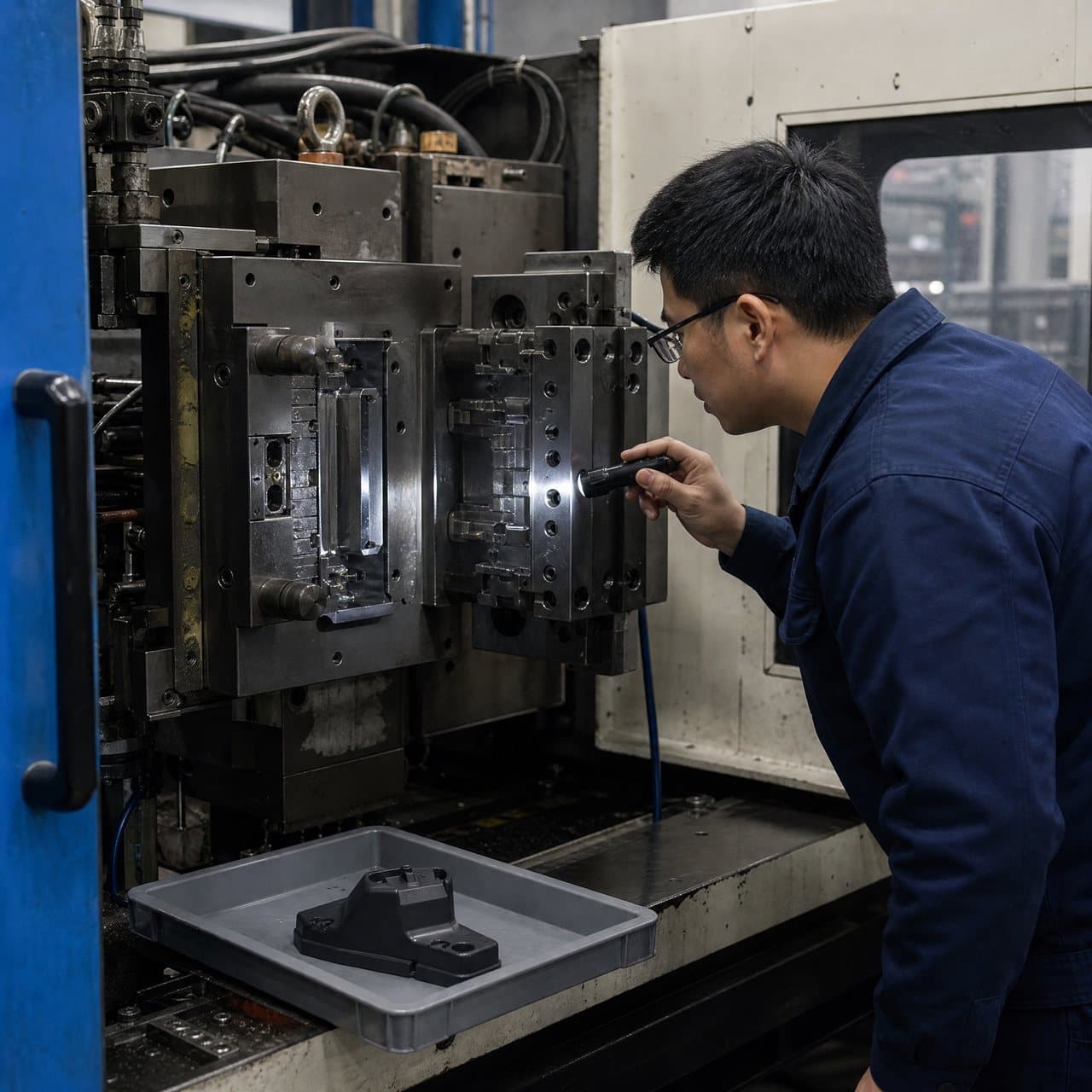

Injection molding gives the supplier a fill, pack, cool, eject and repeat problem in addition to a tool-design problem. Draft, wall transitions, ribs, bosses, gate placement, runners, venting, parting lines, ejection, inserts and undercuts can influence the tool and the part. Molding simulation is one possible input: it can help analyze filling, packing, cooling and deflection and identify risks such as warpage, sink marks or weld lines, but its value depends on the material, geometry, mold, machine and assumptions used in the model.[1][2] A simulation image is evidence for review, not a universal production guarantee.
Do not specify a universal tolerance, cosmetic class or surface finish as a substitute for part definition. Use GD&T or another agreed drawing language where appropriate, and define the datum scheme, critical surfaces, allowable gate or ejector evidence, visible zones, measurement equipment or functional gauge, conditioning and sample quantity. ASME Y14.5 provides a framework for communicating GD&T requirements, but the drawing still needs a part-specific interpretation and acceptance method.[4] Require supplier comments on each feature that needs a special tool action, secondary operation, measurement approach or explicit risk disposition.
04
Evaluate cost, lead-time and volume as a controlled scenario—not a break-even slogan
A reliable comparison separates one-time and recurring scope. For CNC, show programming, fixtures or special workholding if proposed, stock material, machining setups, finishing, inspection, scrap treatment, packing and logistics. For injection molding, show DFM, tool design, tool build, trials, mold changes included or excluded, resin, runner treatment, molding, secondary work, inspection, packing and tool commercial terms. Requirement: suppliers should state currency, quotation validity, delivery term, named place and exclusions. Recommendation: normalize each response to the same CAD revision and sample objective before commercial ranking.
The buyer should model at least two scenarios: the current prototype quantity and the credible next decision point, such as another iteration, pilot build or bridge requirement. Keep design-change risk visible. A route that appears attractive only if an unapproved forecast occurs should be labelled as a contingent option rather than a committed saving. Similarly, a stated lead time is meaningful only with its start condition: receipt of purchase order, approved CAD, material availability, tool design approval, completion of tool build, trial acceptance or dispatch. Do not compare unlike start points as if they were equivalent cycle times.
Ask for a sensitivity note covering the inputs most likely to change the quotation. Typical examples are resin grade, cavity or tool approach, tool actions, inserts, color, finish, expected yield, inspection level, secondary operations, packaging and destination. The goal is not to recreate a supplier's costing model. It is to identify which open requirement could change the purchase decision, and to require a revised proposal when that requirement changes.
05
Use supplier evidence and approval gates before using a prototype as a sourcing decision
Gate 0 is prototype-definition approval. The customer records the CAD and drawing revision, intended use, material direction, environment, critical interfaces, appearance zones, required evidence, planned quantity, delivery boundary and approver. Procurement should confirm that commercial terms and destination assumptions are visible. This gate prevents a supplier from being asked to optimize for an unstated priority, such as speed, material representation, cosmetic fidelity or future production readiness.
Gate 1 is route and scope approval. Request a process-specific DFM or manufacturability response, proposed material statement, cost-and-scope breakdown, lead-time start point, inspection proposal, risk list, packing proposal and change assumptions. For molding, the response should identify the proposed tool concept, parting line, gate, ejection, actions and trial plan. For CNC, it should identify stock form, setups, workholding, inaccessible or high-risk features and finishing. The customer decides whether to proceed, revise the design, run both routes for different questions or stop the request; a supplier recommendation is not a release authorization.
Gate 2 is sample evidence approval. Identify each article by applicable revision, process route, material statement and lot or run information available. Review measured dimensions against the agreed datum and method, visible zones against the agreed standard, and function with representative mating parts or a documented surrogate. Gate 3 is next-step or production release. Close deviations or formally accept them, agree the approved material and tool or machining route, retain the relevant records, and define notification triggers for changes in resin, source, geometry, tool, process location, inspection method or packaging. Prototype evidence should support only the decision it was designed to answer; it does not promise universal tolerances, pricing, cycle time, performance or regulatory status.
Practical takeaway
Before you move
to the next review.
- Define the prototype decision: fit, assembly, function, material behavior, cosmetics, moldability, pilot learning or another stated purpose, and name the approval owner.
- Release the controlled CAD and drawing revision with datums, critical interfaces, measurement condition, mating parts, service environment, visible zones and customer-specific requirements.
- Request separate CNC and molding proposals that state material form and grade, process assumptions, tool or setup concept, sample scope, inspection, packing, delivery term, exclusions and change triggers.
- Compare one-time and recurring scope at the current quantity and an explicitly labelled next-stage scenario; do not use a universal volume, price or lead-time threshold.
- Approve route, sample evidence and next-stage release through documented gates, with deviations, test limits and material or process changes controlled by the customer-defined procedure.
FAQ
Common questions
Is CNC or injection molding better for a plastic prototype?
Neither process is universally better. CNC can be a practical route for a limited set of revisable parts when its stock material and accessible geometry support the learning objective. Injection molding can be more relevant when the decision requires evidence about a moldable geometry, selected molding grade, surface or tool-and-process effects. Select against the prototype purpose, material representation, geometry, quantity, evidence requirement and approved commercial scope.
Can a CNC-machined plastic part validate an injection-molded production part?
It can validate only the outcomes that are genuinely represented by the machined article and agreed test. The stock form, exact grade, orientation, machining, local geometry and conditioning can differ from a molded part. Use the CNC article for defined fit, assembly or functional learning where appropriate, but require molded samples and a part-specific validation plan when molding-related material behavior, shrinkage, cosmetics, gate effects or repeatability are relevant.
At what volume should an OEM switch from CNC to injection molding?
There is no reliable universal switch point. The decision depends on tool scope, revision stability, geometry, resin, cavities, secondary work, inspection, logistics, expected demand and the value of production-relevant learning. Ask suppliers to quote controlled scenarios with stated assumptions, then compare the total scope at the quantities and approval gates that the program actually expects.
What evidence should a supplier provide before a molded prototype is approved?
Ask for the controlled revision, named resin direction, DFM and tool concept, stated material and process assumptions, sample identification, dimensional results using the agreed datum and method, visual review basis, functional or assembly results where required, deviations and a change-control proposal. The customer should decide whether the evidence satisfies its product and market requirements; a supplier report or successful trial alone is not an automatic production or regulatory approval.
References
Source material
- [1] Protolabs — Injection Molding Guide: Process, Design Tips & Materials
- [2] Autodesk — Moldflow injection and compression molding simulation overview
- [3] SABIC — NORYL Resin material family information
- [4] ASME — Y14.5 Dimensioning and Tolerancing
This guide is general information for early procurement and engineering discussion. It does not replace product-specific DFM, qualification, validation, regulatory assessment or legal advice.
